The acoustic bricks

GIMA acoustic bricks are made of fired clay. Due to the material composition, the preparation and the firing temperature of about 1150° Celsius, it is assigned in quality terms to the ceramic used for masonry facings.
With a specialist manufacturing process, GIMA has succeeded in leveraging the positive influences of the firing process. This avoids damage to the firing skin and preserves the protective cover. However, at the same time, a ‘deburred surface’ is produced, creating a special aesthetic appearance.

+ Formats + Color variety + References + Technical data

Frequently used

formats

Here you can see an overview of the standard formats of acoustic bricks. Depending on the building requirements, we are of course able to offer other dimensions for all types of product. For this, simply pick up the phone or use our contact form to get in touch with us.

Acoustic bricks
Format in mm 		Approx. demand
per m²		Weight in
kg/piece
240/52/240163,2
240/71/240164,2
240/90/240165,7
240/115/240167,2
240/52/113331,7
240/71/113332,2
240/90/113332,7
240/115/113333,2

Scroll right for more information >

Acoustic bricks

Detailed drawings

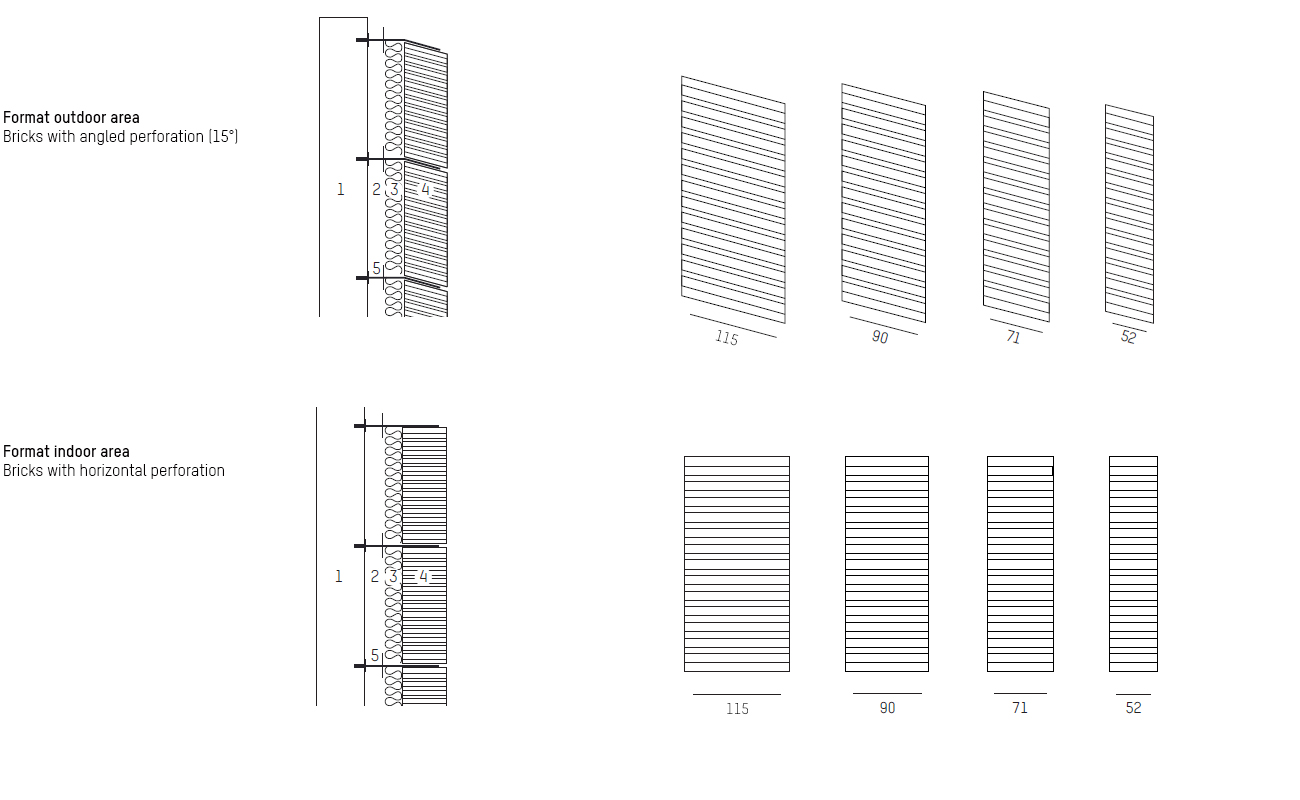

Depending on the intended application, acoustic bricks can be produced with angled or horizontal perforation. In our product folder, you will find samples of technical drawings showing the various different variants and the product structure. Let yourself be inspired for your next project.

0422 GIMA I PRODUKTE12566_Akustikziegel_Pescara_Alexander Bernhard
0422 GIMA I PRODUKTE12582_Akustikziegelwand_Luna_Alexander Bernhard
0422 GIMA I PRODUKTE12565_Akustikziegel_Bologna_Alexander Bernhard
0422 GIMA I PRODUKTE12564_Akustikziegel_Passo_Alexander Bernhard

Limitless color variety

Acoustic bricks

We can produce all ceramics products in your desired color and format. Here you can see a small selection showing what acoustic ceramic products look like in their various color variants.

For facades, we only manufacture on a project-specific basis, and we consult with you about your desired color until we have achieved a perfect match with your wishes. Let yourself be inspired by our color overview and discover a selection of colors produced previously. Simply order a sample of your favorites or download our textures for renderings.

+ Color overview for facades + Color development
0422 GIMA I PRODUKTE12566_Akustikziegel_Pescara_Alexander Bernhard
Pescara Acoustic bricks
0422 GIMA I PRODUKTE12582_Akustikziegelwand_Luna_Alexander Bernhard
Luna Acoustic bricks
0422 GIMA I PRODUKTE12565_Akustikziegel_Bologna_Alexander Bernhard
Bologna - Acoustic bricks
0422 GIMA I PRODUKTE12564_Akustikziegel_Passo_Alexander Bernhard
Passo Acoustic bricks

Impressive

references

Music school Luzern, Kriens | Enzmann Fischer Partner AG, Zürich

Bricks & facade | Acoustic bricks | 240 x 240 x 52 mm
© Anett Landsmann
+ Reference overview

Impressive

references

Kilian-von-Steiner-Schule, Laupheim | hotz + architekten PartGmbB, Freiburg

Bricks & facade | Acoustic bricks | 237 x 90 x 113 mm
© Bernhard Strauss
+ Reference overview

Relevant

technical data

The GIMA acoustic insulation system is a cost-effective, future-oriented and high-quality solution. The acoustic energy responsible to noise levels, at frequencies of between roughly 250 to more than 4000 Hz is absorbed almost completely. As a consequence, the tested GIMA acoustic insulation systems can be classified as highly absorbent. The outcome is aesthetically attractive, combined with a high level of functionality. Based on DIN EN 771/DIN 20000-401 and ZTV-Lsw 06, tests are conducted for dimensions, web thicknesses, brick and shard densities, the proportion of perforation, water absorption, frost resistance and resistance to stone projectiles.

Further

information

+ Technical knowledge
+ Planning service

The acoustic brick with horizontal perforation is used in the interior. For the outside area, the ZTV-Lsw 06 requires the drainage of possible rainwater. The insulation must be protected from moisture penetration and contamination. The GIMA acoustic tile with angled perforation was developed for this purpose. It is to be offset in such a way that the perforation slopes outwards. The position and nature of the insulation mat is of great importance for the function of the acoustic wall. Depending on the required degree of absorption, the insulation material should have a density of 110 kg / m3 and be covered with a fleece. The mat must be water-repellent. It must be installed in such a way that a slight pressure towards the acoustic shell is guaranteed.

The acoustic brick with horizontal perforation is used in the interior. For the outside area, the ZTV-Lsw 06 requires the drainage of possible rainwater. The insulation must be protected from moisture penetration and contamination. The GIMA acoustic tile with angled perforation was developed for this purpose. It is to be offset in such a way that the perforation slopes outwards. The position and nature of the insulation mat is of great importance for the function of the acoustic wall. Depending on the required degree of absorption, the insulation material should have a density of 110 kg / m3 and be covered with a fleece. The mat must be water-repellent. It must be installed in such a way that a slight pressure towards the acoustic shell is guaranteed.

Weiterlesen

You will find more information in our download area.
If you have any questions, please do not hesitate to contact us at any time.

+ Contact
